SMD OSCILLATOR
4PADS PACKAGE5.0x3.2

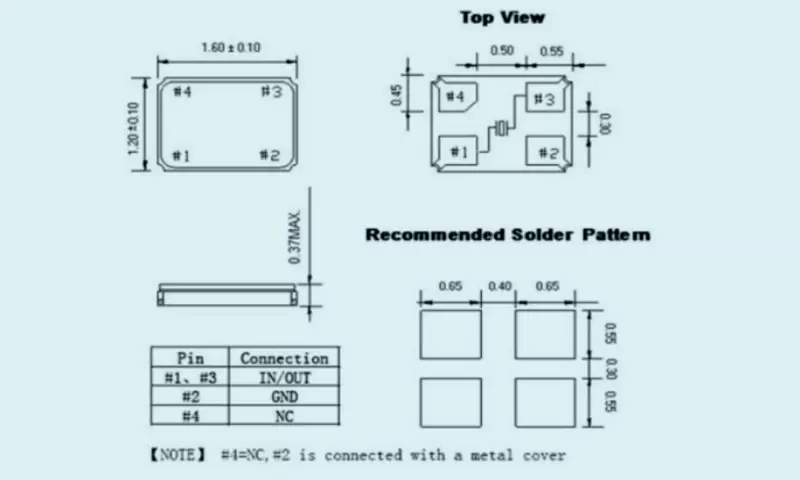

SMD MHz RANGE CRYSTAL UNIT SMD1.6x1.2
| ltem | Series | 1612 |
| Frequency Renge(F0) | 24~96MHZ | |
| Frequency Tolerance(at 25℃) | ±3~±10ppm，or specify | |
| FrequencyStability Over Operating Temperature Range | ±10~±50ppm，or specify | |
| OperatingTemperature Range | -40~125°C or specify | |
| Shunt Capacitance(C0) | 3 pF Max. | |
| Drive Level(DL) | 1~100μW(50μW typical) | |
| Load Capacitance(CL) | 7 pF,8 pF,10 pF,or specify | |
| Storage Temperature Range | -55~+125℃ | |
| ThermistorB-constant(25~50℃) | 4250, or specify | |
| Motional resistance (ESR) | 24~30MHZ 30~96MHZ | 80Ω max 50Ω max |
| Aging (at 25°℃) | ±3 ppm/year Max. | |
