QUARTZ CRYSTAL UNIT
SMD6.0x3.5

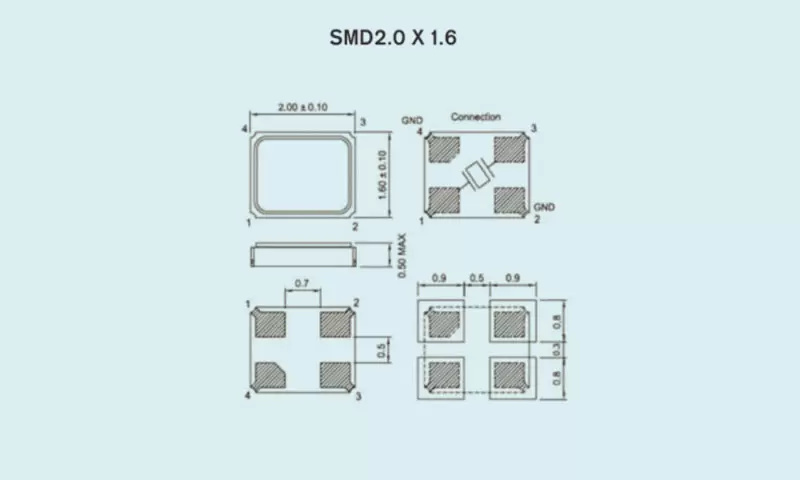

QUARTZ CRYSTAL UNIT SMD2.0x1.6
| TYPE | SMD2.0x1.6 |
| Frequency range | 12MHz~96MHz |
| Crystal cut and Mode | AT/FUND |
| Frequency Tolerance(at25C) | ±5ppm~±20ppm,or specify |
| Frequency Temperature Characteristics | ±10ppm(-20℃-70℃); ±30ppm(-40°C-85℃),or specify |
| Operating Temperature Range | -40℃~+125℃ |
| Storage Time.Range | -55℃~+125℃ |
| Equivalent Series Resistance(ESR) | See Table |
| Load Capacitance(CL) | 5pf~∞ |
| Shunt Capacitance(Co) | <3pf |
| Insulation Resistance | >500MΩ At DC 200V |
| Drive Level | 10μw ~200μw |
| Aging(Year) | ±1ppm(Year),±3ppm(Year) |
FREQUENCIES VS EQUIVALENT SERIES RESISTANCE
| Frequency(MHz) | Mode | ESR(Ω)SMD2.0x1.6 |
| 12.000≤f<20.000 | AT/FUND | ≤100 |
| 20.000≤f<30.000 | AT/FUND | ≤ 60 |
| 30.000 ≤f<54.000 | AT/FUND | ≤ 40 |
| In addition to the parameters listed in the table, it can be designed according to customer needs | ||
