SMD Crystal Ocillators Differential Output
LV3.2x2.5

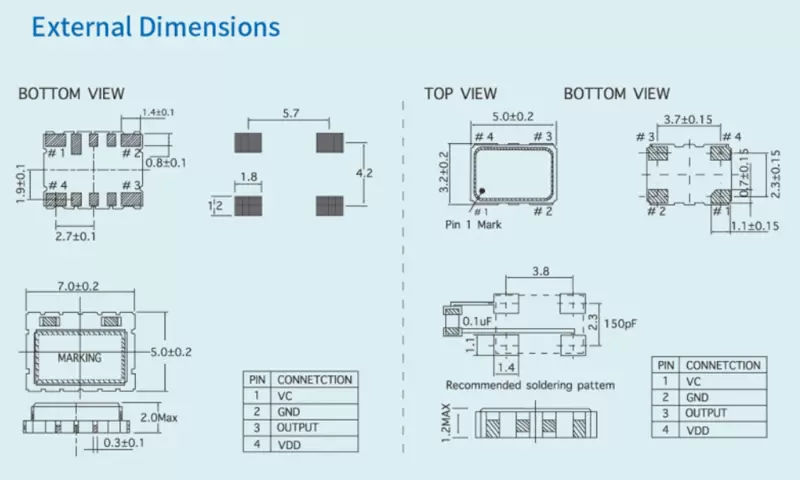

SERIES SMD TCXO
| Electrical Specifications | 7050 | |
| Frequency range | 10MHz~236MHz | |
| Operating Temperature Range | -40℃~+85℃ | |
| Frequency Stability | ±0.5ppm | |
| Over Temperature Range | ±1.0ppm | |
| Supply Voltage | 3.3Vdc±5%、5.0Vdc±5% | |
| Supply Current | 1.5mA 2.0mA | |
| Frequency Stability | Supply Voltage Variation Output Load Variation Aging | ±0.2PPM ±0.2PPM ±0.1ppm/year |
| Output Level( Clipped Sine ) | 0.8 Min | |
| Load | 10KQ//10PF | |
| Vc input impedance | 1.0 | |
| Vc | 100Hz 1Khz | |
| input@13.0MHz | 10KHz | |
| start time | 2 mSec Max | |
| Storage Time.Range | -55℃~+125°C | |
| In addition to the parameters listed in the table, it can be designed according to customer needs | ||
| Remark: | ||
| All specifications subject to change without not notice. | ||
| 20MHz~40MHz only for VDD=2.8V~3.3V | ||
