Name: Quartz Crystal Resonator SMD 5.0×3.2
Uploaded: 2026-06-08T16:05:00+08:00

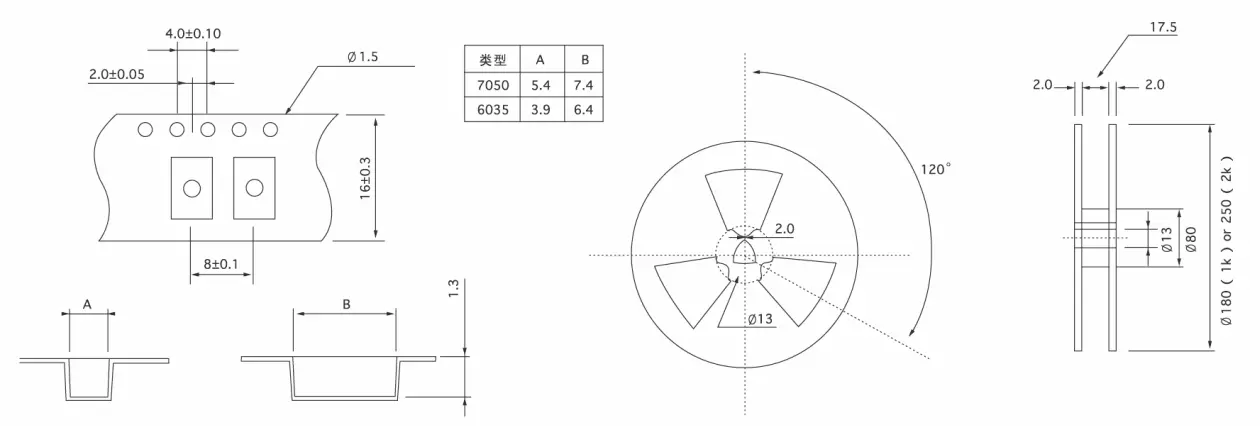

Quartz Crystal Resonator SMD 5.0×3.2 SMD 5.0×3.2

TYPE	SMD5.0×3.2
Frequency range	6MHz ~ 125MHz
Crystal cut and Mode	AT/FUND & 3rd Overtone
Frequency Tolerance (at 25°C)	±5ppm ~ ±30ppm, or specify
Frequency Temperature Characteristics	±10ppm (-20°C - 70°C); ±30ppm (-40°C - 85°C)
Operating Temperature Range	-40°C ~ +125°C
Storage Time.Range	-55°C ~ +125°C
Equivalent Series Resistance (ESR)	See Table
Load Capacitance (CL)	6pf ~ ∞
Shunt Capacitance (Co)	< 5pf
Insulation Resistance	> 500MΩ At DC 200V
Drive Level	10μw - 300μw
Aging (Year)	±3ppm (Year)

Frequencies vs Equivalent Series Resistance

Frequency (MHz)	Mode	ESR (Ω) SMD5.0×3.2
6.000 ≤ f	AT/FUND	≤ 500
6.000 < f <20.000	AT/FUND	≤ 80
20.000 ≤ f <40.000	AT/FUND	≤ 40
40.000 ≤ f <80.000	3rd Overtone	≤ 60
In addition to the parameters listed in the table, it can be designed according to customer needs

Consult sales representative for other specifications.
