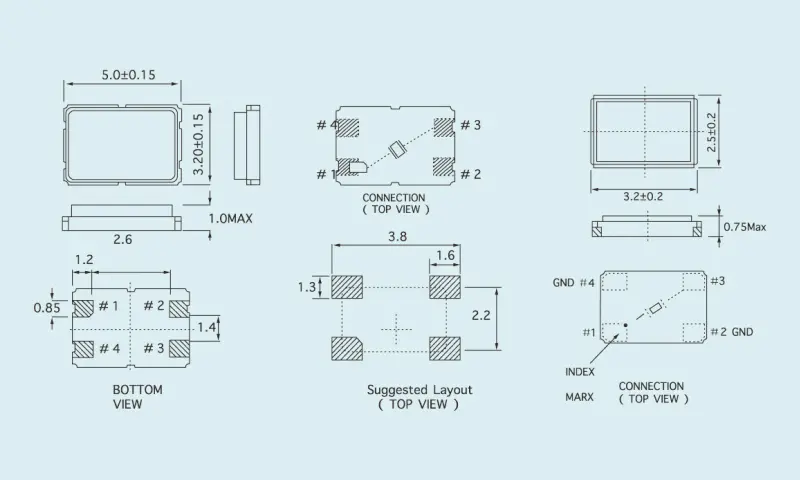

Quartz Crystal Resonator SMD 3.2*2.5 SMD 3.2*2.5
TYPE | SMD3.2×2.5 |
Frequency range | 8MHZ ~ 200MHz |
Crystal cut and Mode | AT/FUND & 3rd Overtone |
Frequency Tolerance (at 25°C) | ±5ppm ~ ±20ppm, or specify |
Frequency Temperature Characteristics | ±10ppm (-20°C - 70°C); ±30ppm (-40°C - 85°C), or specify |
Operating Temperature Range | -40°C ~ +125°C |
Storage Time.Range | -55°C ~ +125°C |
Equivalent Series Resistance (ESR) | See Table |
Load Capacitance (CL) | 5pf ~ ∞ |
Shunt Capacitance (Co) | < 3pf |
Insulation Resistance | > 500MΩ At DC 200V |
Drive Level | 10μw ~ 200μw |
Aging (Year) | +3ppm (Year) |
Frequencies vs Equivalent Series Resistance

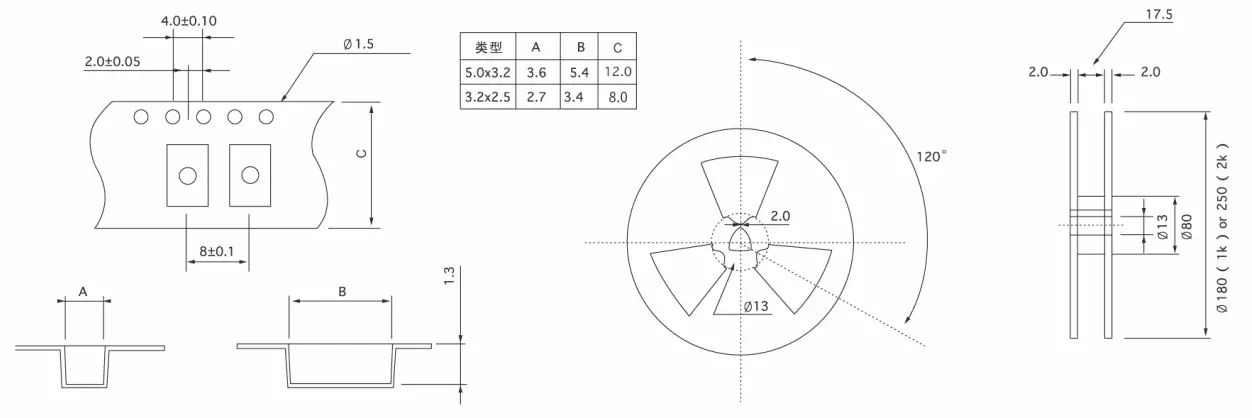

Frequency (MHz) | Mode | ESR (Ω) SMD3.2×2.5 |
8.000 ≤ f < 12.000 | AT/FUND | ≤ 180 |
12.000 ≤ f <20.000 | AT/FUND | ≤ 80 |
20.000 ≤ f <30.000 | AT/FUND | ≤ 30 |
30.000 ≤ f <54.000 | AT/FUND | ≤ 20 |
In addition to the parameters listed in the table, it can be designed according to customer needs | ||
Consult sales representative for other specifications.
