QUARTZ CRYSTAL UNIT
SMD6.0x3.5

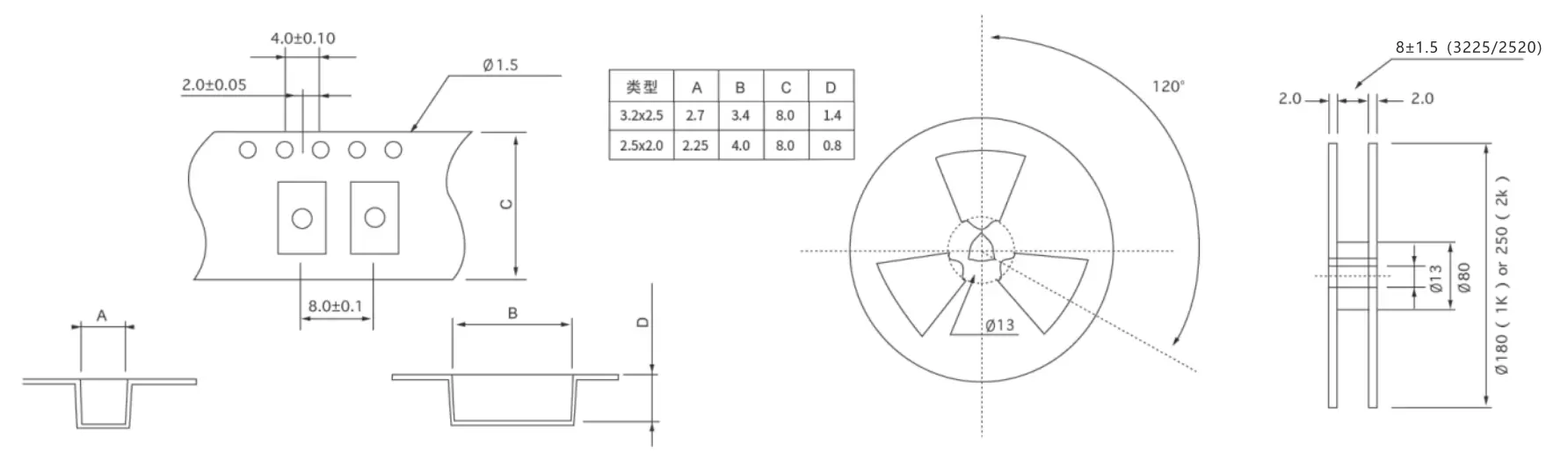

SMD OSCILLATOR 4PADS PACKAGE2.5x2.0
| Electrical Specifications | OSC2520 | |
| Frequency Renge(F0) | 1MHz~200MHz&32.768KHz | |
| Fan Out Type | CMOS/HCOMS/LVCMOS | |
| Supply Voltage (VDD) Recommended Operating | 1.8V、2.5V、2.8V、3.3V、5.0V +10% | |
| Operating Temperature Range | -40℃~+85℃℃、-40℃~+125°C or specify | |
| Frequency Stability Over Temperature | +20ppm、+50ppm、+100ppm、orspecify | |
| CMOS | ||
| VOL(max) | 0.33V、0.5V | |
| VOH(min) | 2.97V、4.5V | |
| Storage Temperature Range | -55℃~+125℃ | |
| Input Current | 3.3V | 1Mhz~50Mhz 10mA >50Mhz 20mA |
| 5.0V | ||
| Symmetry(duty cycle) | 40%~60%;45%~55% | |
| Rise/Full Time(at0.2VDD~0.8VDD) | 5ns max | |
| Load Capacitance | 15pF/30pF/50pF | |
| Start-up time(Typical ) | 3ms max(15pF) | |
| E/D Function | PIN#1 Open orVhigh≥0.7VDD | PIN#3 Active |
| PIN#1 Vlow≥0.3VDD | Highz | |
| Aging @25° 1st year(Max) | +1ppm/year，+3ppm/year，±5ppm/year | |
| In addition to the parameters listed in the table, it can be desianed according to customer needs | ||
