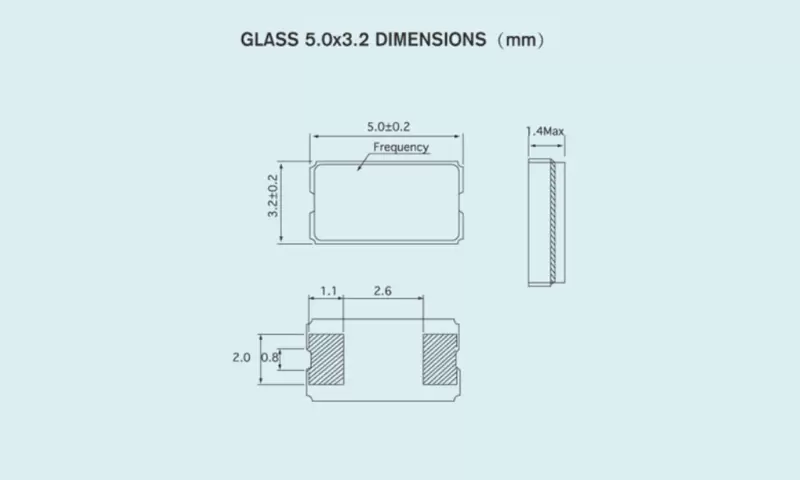

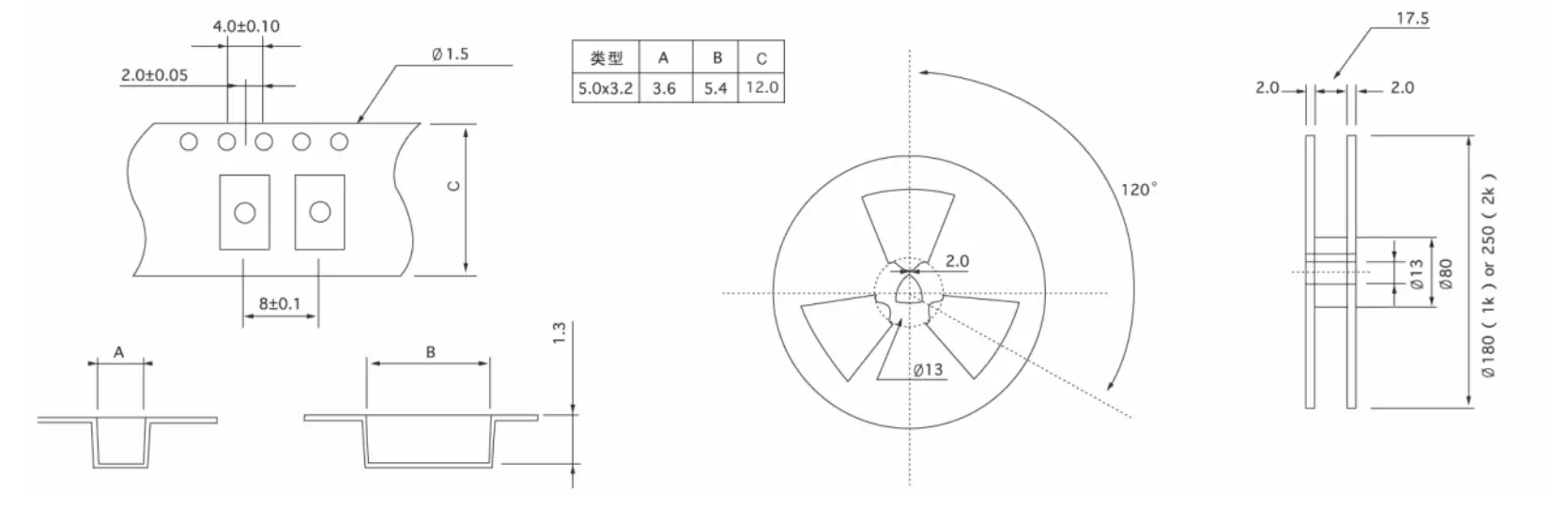

QUARTZ CRYSTAL UNIT GLASS5.0x3.2

TYPE	GLASS 5.0X3.2
Frequency range	8MHz~60MHz
Crystal cut and Mode	AT/FUND
Frequency Tolerance(at25C)	±5ppm~±30ppm,or specify
Frequency Temperature Characteristics	±10ppm(-20℃-70℃);±30ppm(-40℃-85℃);
Operating Temperature Range	-40℃~+125℃
Storage Time.Range	-55℃~+125℃
Equivalent Series Resistance(ESR)	See Table
Load Capacitance(CL)	6pf~∞
Shunt Capacitance(Co)	<5pf
Insulation Resistance	>500MΩ At DC 200V
Drive Level	10μw ~300μw
Aging(Year)	±3ppm(Year)

FREQUENCIES VS EQUIVALENT SERIES RESISTANCE

Frequency(MHz)	Mode	ESR(Ω) GLASS 5.0X3.2
6.000<f<20.000 <="" td="">	AT/FUND	≤ 200
20.000≤f<40.000	AT/FUND	≤ 150
40.000≤f<80.000	3rd Overtone	≤ 60
In addition to the parameters listed in the table, it can be designed according to customer needs
