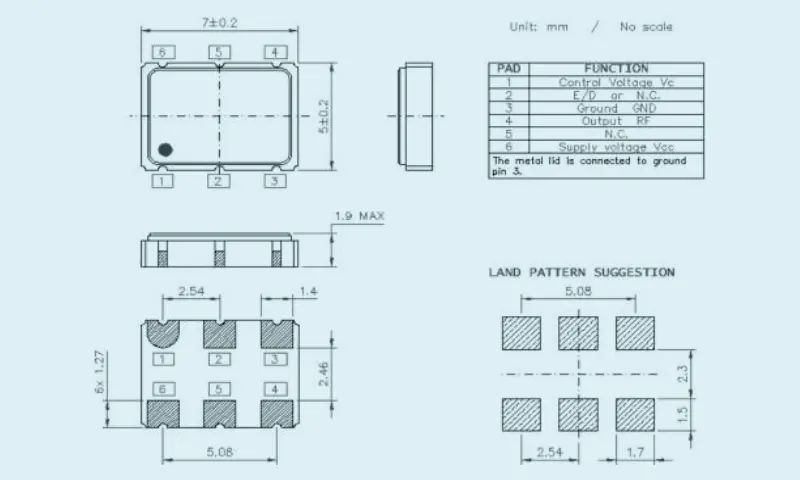

Quartz Crystal Resonator VCXO 5.0×3.2 VCXO 5.0×3.2

Electrical Specifications		VCXO 5.0×3.2
Frequency Range		1MHZ ~ 60MHZ
Supply Voltage		5.0V
Pin 1 Control voltage		2.5V±2V (2.5V)
Frequency Deviation		±50ppm Min, ±100ppm Min, ±150ppm Min (option)
Current Consumption		35mA Max
Temperature Range	Operating	-40°C ~ +85°C, user spec
	Storag	-55°C ~ +125°C
Frequency Stability		±50ppm, User spec
Output Load Condition (COMS)		COMS 15pF
Symmetry (Duty Cycle)		45% ~ 60%; 45% ~ 55%
Output Rise and Fall Time (Tr/Tf)		5ns Max
Low Output Voitage (COMS)		10%Vdd
High Output Voltage (COMS)		90%Vdd
Oscillation Start up Time		5ms Max
Aging @25°C 1st year (Max)		±3ppm/year
Phase Jitter (12KHZ ~ 20MHZ)		100ps Max
Period Jitter (PK-PK)		25ps Max

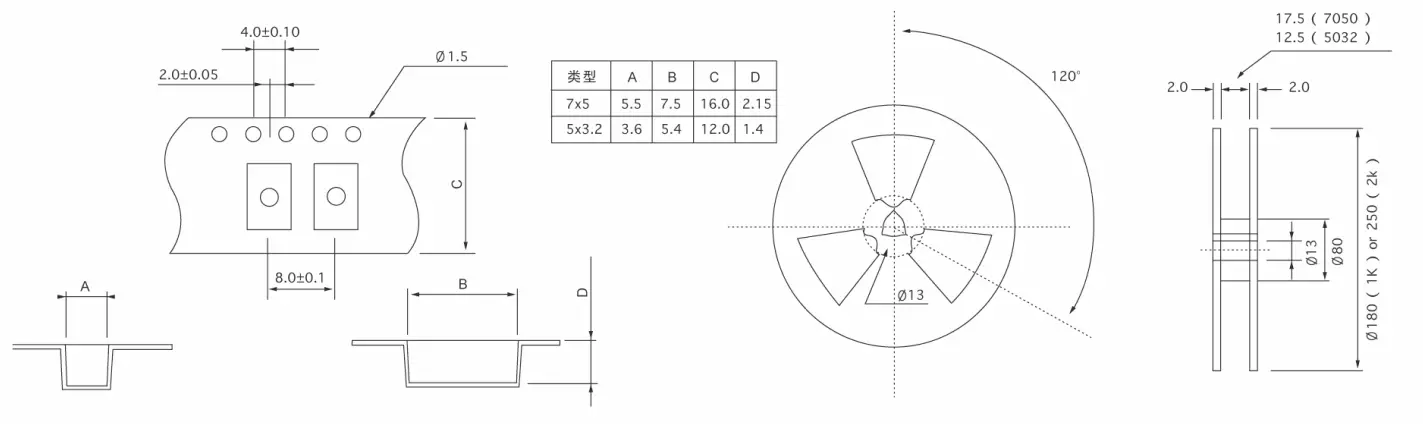

In addition to the parameters listed in the table, it can be designed according to customer needs

Consult sales representative for other specifications.
