Name: Quartz Crystal Resonator GLASS 5.0*3.2
Uploaded: 2026-06-08T15:42:00+08:00

Quartz Crystal Resonator GLASS 5.0*3.2 5.0*3.2

TYPE	GLASS 5.0×3.2
Frequency range	8MHz~60MHz
Crystal cut and Mode	AT/FUND
Frequency Tolerance (at 25°C)	±5ppm ~ ±30ppm, or specify
Frequency Temperature Characteristics	±10ppm (-20°C-70°C); ±30ppm (-40°C - 85°C)
Operating Temperature Range	-40°C ~ +125°C
Storage Time.Range	-55°C ~ +125°C
Equivalent Series Resistance (ESR)	See Table
Load Capacitance (CL)	6pf ~ ∞
Shunt Capacitance (Co)	< 5pf
Insulation Resistance	> 500M Ω At DC200V
Drive Level	10μw ~ 300μw
Aging (Year)	±3ppm (Year)

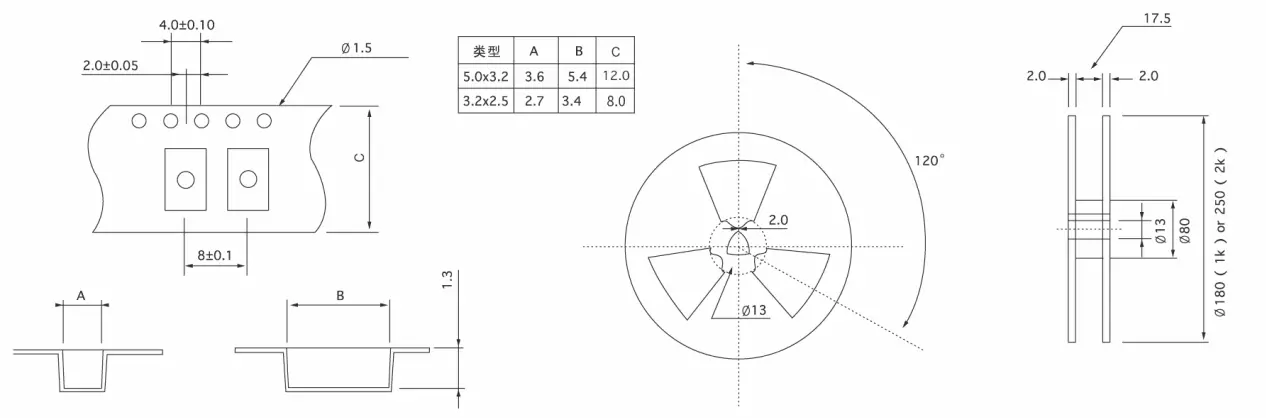

Frequencies vs Equivalent Series Resistance

Frequency (MHz)	Mode	ESR(Ω) GLASS 5.0×3.2
6.000 < f < 20.000	AT/FUND	≤ 200
20.000 ≤ f < 40.000	AT/FUND	≤ 150
40.000 ≤ f < 80.000	3rd Overtone	≤ 60
In addition to the parameters listed in the table, it can be designed according to customer needs.

Consult sales representative for other specifications.
