Name: SMD KHz RANGE CRYSTAL UNIT
Uploaded: 2026-01-19T14:00:45+08:00

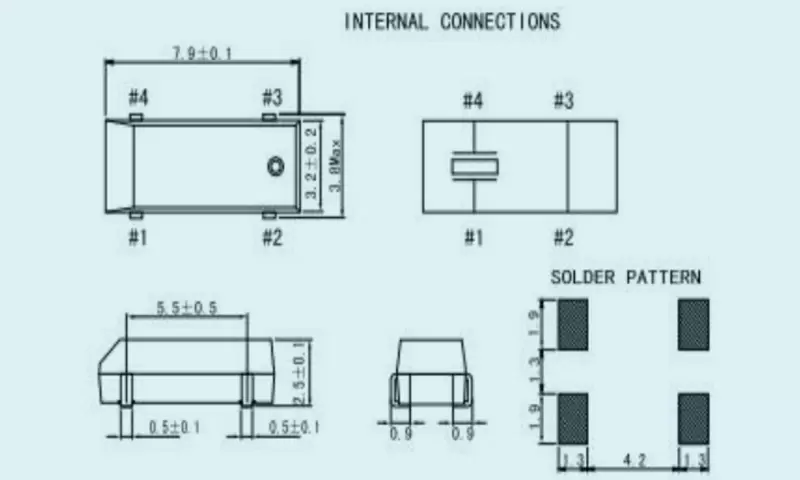

SMD KHz RANGE CRYSTAL UNIT TF8.0x3.8

ltem	Series	8038
Output type		Fundmental
Frequency Renge(F0)		32.768KHZ	20K~120KHZ
Frequency Stability		+/-20ppm +/-50ppm	+/-50ppm +/-100ppm
Operating Temperature Range(TOPR)		-40℃~+85℃、-40℃~+125°C or specify
Storage Temperature Range(TSTG)		-55℃℃~+125°C
Drive Level(DL)		typecial 0.1uw,1uw max
Turnover temprature(Ti)		25℃±5℃
Parabolic coefficient(B)		-0.04*10-6/℃2 max
Load capacitance(CL)		7pF,9pF,12.5pF or specify
Motional resistance (ESR)		50KΩ max
Motional capacitance (C1)		1.8 fF TyP.	4.0 fF ~ 0.6 fF
Shunt capacitance(C0)		0.9 pF TyP	2.0 pF ~ 0.6 pF
Frequency aging (First Year)		3x10-6/year Max.	5x10-6/year Max.
In addition to the parameters listed in the table, it can be designed according to customer needs
